FEDERATED LOGISTICS

Facility: Regional Distribution Center
Location: Seattle, WA
Service Area: Bon Marche stores in WA, OR, ID, MT, WY
Size: 520,000 square feet
Employees: 250 (1 _ shifts)
Director of Maintenance and Engineering: Daryl Meadows
Product Handled: Apparel, electronics, cookware, other department store merchandise
Throughput: 15,000 cartons/day average (25,000 peak)
Types of conveyors: Zero Pressure Live roller (190-ABEZ)
Roller Bed (190-RB)
Sawtooth Merge (190-LR)
Conveyor Supplier: Hytrol Conveyor Inc., Jonesboro, AR
Systems Integrator: R.H. Brown Co. Inc., Seattle, WA

Conveyors Keep the Merchandise Moving

New conveyor system helps Federated's Seattle Distribution Center meet its goal of getting goods out to the department stores-fast!

Federated Department Stores believes that one of the best ways to stay ahead in the fast-paced retail industry is to streamline your distribution system. Toward that end, the company five years ago created Federal Logistics and Operations. The stated mission of that business unit is to drastically cut both costs and processing time in merchandise distribution for Federated's retail stores.

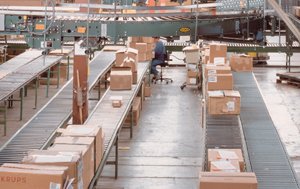

Conveyors imageThis mission is being carried out quite successfully at the Federated Logistics Retail Distribution Center in Seattle thanks in large part to a recently installed conveyor system from Hytrol. The 520,000 square-foot facility replenishes Federated's Bon Marche stores located in a five-state region in the Northwest. (Among the other well-known Federated Department Stores names are Macy's, Bloomingdale's, and Burdines.)

The Seattle distribution center now effortlessly processes more than 15,000 cartons a day and up to 25,000 during peak periods. It operates in a cross-dock mode, which means there's very little warehousing. Merchandise in unloaded from trailers and containers at the receiving docks and flowed directly to shipping for store delivery.

Virtually all (98 percent) of the merchandise moves through the facility with no manual handling, a big factor in the high productivity and throughput levels now being achieved. That wasn't always the case, though. Prior to installation of the new conveyor equipment at the start of this year, about 20 percent of the cartons could not be placed on the existing conveyors because of size constraints. These larger boxes had to be handled and moved throughout the facility manually, adding time and cost to the D.C.'s operation.

Setting the Objectives

Federated Logistics wanted a new system that would address the carton size problem while at the same time realizing the following objectives:

  • Achieve zero-pressure accumulation with maximum density.
  • Lower maintenance costs.
  • Reduce noise levels throughout the distribution center.

Conveyors imageAll of these objectives-and more-have been accomplished with the installation of the new conveyor units. They include a zero-pressure horizontal live roller with the exclusive EZ Logic feature (190-ABEZ); a roller bed belt conveyor (190-RB); and a horizontal sawtooth merge (190-LR). Throughout the equipment-selection and installation process, Federated worked closely with R.H. Brown Co. of Seattle, a systems integrator and Hytrol distributor.

"We're now able to efficiently handle larger box sizes up to 42-inches wide," reports Daryl Meadows, director of maintenance and engineering at the facility. "The Hytrol zero-pressure system has improved throughput dramatically. Our productivity levels are way up."

A Cross-Dock Orientation

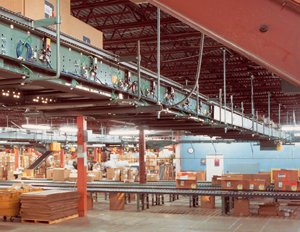

Conveyors imageThe cross-dock operation is smooth and efficient, enabling Federated Logistics to achieve high merchandise velocity. As soon as the trailers and containers arrive at the receiving docks, the cartons are unloaded onto an incline belt that carriers them up to four ceiling-supported zero-pressure conveyors. Inside these cartons are apparel, small appliances, cookware, and a variety of other items sold in the Bon Marche stores.

The cartons then travel down the zero-pressure lines toward a high-speed, 250 foot-per-minute sawtooth merge with three merge spurs. The speed and reliability of the sawtooth merge helps keep merchandise from backing up in the receiving area.

The cartons then are transported on a takeaway conveyor to the shipping side of the facility where they are sorted by store location. After sortation, high-speed pushers send the merchandise onto zero-pressure lines in the shipping area, which discharge onto a chute and then onto extendable belt conveyors. These extendable units are brought right to the trailer for rapid loading to each store location.

Multiple Benefits Realized

Hytrol EZLogic Accumulation SystemFrom receiving to shipping, the flow is fast, simple, and direct-all attributes that support the Federated Logistics and Operations mission. The system has also been highly reliable and trouble free, a positive factor in reducing maintenance costs.

"We particularly appreciate the system's EZ Logic features," adds Maintenance & Engineering manager Meadows. "The photoeye keep big cartons from damaging the smaller ones. And we're able to do singulation release of the boxes. I would recommend this system to anyone."

Federated's Seattle Distribution Center

Federated Logistics' Seattle distribution center is designed as a cross-dock operation emphasizing flow, not storage. Cartons are unloaded from trailers and containers and placed on incline belts that carry them up to four ceiling-supported zero-pressure conveyors. They then travel down the zero-pressure lines toward a high-speed sawtooth merge, which helps keep the merchandise from backing up in receiving. A takeaway conveyor transports the cartons to the shipping side of the facility where they are sorted by store location. After sortation, high-speed pushers send the merchandise onto zero-pressure lines, which discharge onto a chute and then onto extendable belt conveyors. These extendable units are brought right to the trailer for rapid loading to each store location.
